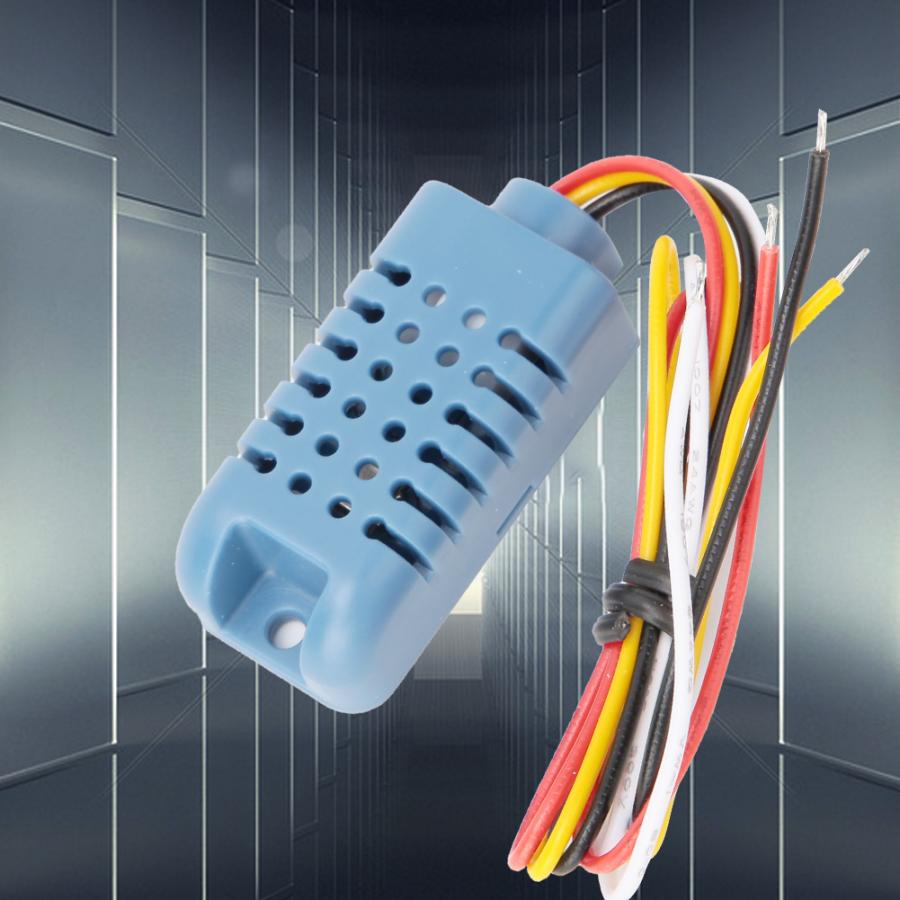

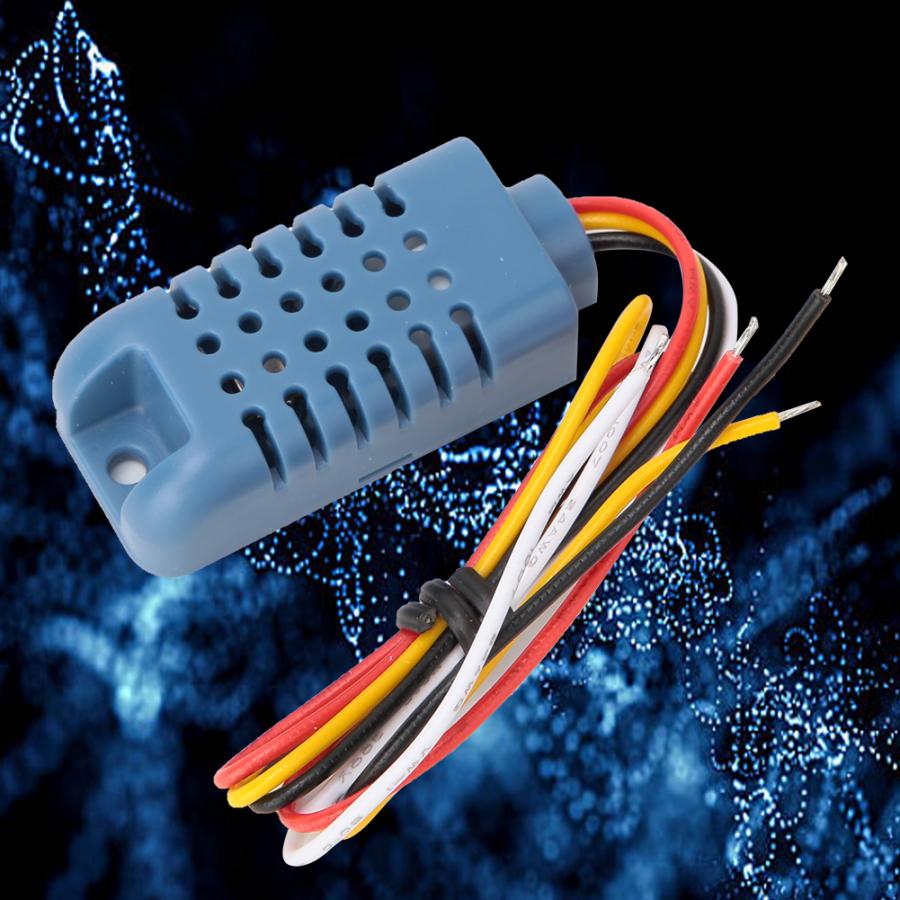

AM2301A Temperature and Humidity Sensor with communication Line For Humidity Measurement And Control

Model Number : GS-AM2301A

Certification : CE , Rohs

Place of Origin : China

MOQ : 10pcs

Payment Terms : Paypal ,Western Union or T/T

Supply Ability : 10000pcs/month

Delivery Time : 3-5 working days for sample order or according to your order quantity

Packaging Details : Anti-Static Bag

Usage : Industrial

Typical Accuracy : ±0.5 °C

Operating Range : -40~80°C

Interface : 1-Wire

Supply Voltage : 3.3-5.5V

Humi Response Time : 5s

Temp Response Time : 5s

Contact Now

Overview :

AM1011A analog temperature and humidity module is a temperature and humidity sensor with calibrated analog signal output. It adopts analog voltage output mode and has the characteristics of high accuracy, high reliability, good consistency and temperature compensation, ensuring good long-term stability. It is especially suitable for enterprises with demanding requirements on quality and cost.

Features :

• Excellent long-term stability

• Low power consumption, small size, high cost performance
• Complete interchange
• Analog voltage output
• Excellent long-term stability
• Low power consumption, small size, high cost performance

Specification :

Typical accuracy (% RH)	± 3
Operating range (% RH)	0 to 99.9
Humi response time(s)	5
Typical accuracy (°C)	± 0.5
Operating range (°C)	-40~80
Temp response time(s)	5
Interface	0~3VDC/10KNT ± 1%
Supply voltage(V)	4.75~5.25

Size:L*W*H (mm)

44.4*20*12.9

Application Range :

HVAC, dehumidifier, testing and testing equipment, consumer goods, automotive, automatic control, data recorder, weather station, home appliances, medical and other related humidity control, humidity measurement and control.
