DHT10 SIP Packaged Temperature And Humidity Sensor For Humidity Measurement And Control

Model Number : GS-DHT10

Certification : CE , Rohs

Place of Origin : China

MOQ : 10pcs

Payment Terms : Paypal ,Western Union or T/T, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-5 working days for sample order or according to your order quantity

Packaging Details : Anti-Static Bag

Usage : Industrial

Typical Accuracy : 0.5°C

Operating Range : 0 To 100°C

Supply Voltage : 2.5-5.5V

Contact Now

Overview :

DHT10 is equipped with a newly designed ASIC chip, an improved MEMS semiconductor capacitive humidity sensor and a standard on-chip temperature sensor. Its performance has greatly improved or even exceeded the reliability level of the previous generation of sensors. The new generation of temperature and humidity sensors have been improved to make their performance more stable in harsh environments. Each sensor is strictly calibrated and tested. Because of the improvement and miniaturization of the sensor, its cost-effective ratio is higher.

Features :

• Full calibration

• strong anti-interference ability
• Digital output, I2C interface
• Excellent long-term stability
• Quick response and strong anti-jamming capability
• Wide voltage support 2.5-5.5v DC

Specification :

Typical accuracy (% RH)	± 3
Operating range (% RH)	0 to 100
Humi response time(s)	8
Typical accuracy (°C)	± 0.5
Operating range (°C)	-40~80
Temp response time(s)	5 to 30
Interface	I²C
Supply voltage(V)	2.5~5.5

Size:L*W*H (mm)

23.3*12.5*5.8

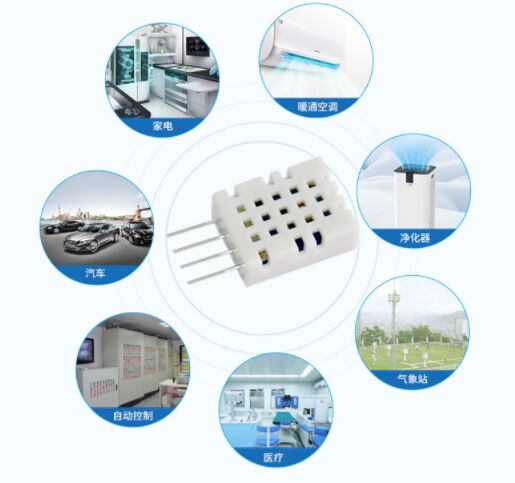

Application Range :

HVAC, dehumidifier, testing and testing equipment, consumer goods, automotive, automatic control, data recorder, weather station, home appliances, medical and other related humidity control, humidity measurement and control.
